Honda Pioneer 1000 and 1000-5 Guide for 2019.

The Honda Pioneer 1000 and 1000-5 are back for 2019 with few changes. A couple of extra color choices, yellow on the 1000 EPS and Matte Black on the 1000-5 Deluxe. You can see the model highlights and features, along with 2019 prices below.

Honda Pioneer 1000 and 1000-5 Models

Pioneer 1000 Models

2019 honda pioneer 1000-12019 Honda Pioneer 1000

ENGINE

999cc liquid-cooled inline twin. Fuel injection, Unicam head for a more compact engine package.

TRANSMISSION

6-speed Dual Clutch Transmission. Choose between manual mode or fully automatic. Plus, the addition of Sport Mode in EPS and LE models increases the fun, shifting at higher RPMs for a full-performance driving experience.

PADDLE SHIFTING

Steering column-mounted paddle shifters in EPS and LE models. In Manual mode, they let you shift without ever taking your hands off the wheel, and in Automatic mode, they let you override the current gear with a quick up or downshift, holding that gear for several seconds before returning to Automatic mode.

HIGH/LOW SUBTRANSMISSION

With a full 42-percent gear reduction between High and Low, you get the torque you need in all 6 gears. It comes in handy when driving over difficult terrain, scaling steep hills or towing heavy loads.

TURF/2WD/4WD/DIFF LOCK

Don’t tear up sensitive surfaces. Select Turf Mode. Want to access as much traction as possible? Put it in 4WD. Need maximum power at all four wheels? Lock the front and rear differentials. You can do it all with a shift of a single lever.

ADVANCED TRANSMISSION LOGIC

The brain of the DCT, Advanced Transmission Logic, senses how you drive and adapts. Relaxed drivers get earlier shifts for a quieter ride at lower engine speeds. Sportier drivers will hold each gear longer for higher RPM shifts. And when going downhill, you get true engine braking.

HILL START ASSIST

Honda’s Hill Start Assist automatically holds the Pioneer 1000 Limited Edition in position while you move your foot from the brake pedal to the accelerator—eliminates roll-back.

I-4WD

The Pioneer 1000 Limited Edition is equipped with the I-4WD system. It simplifies operation, increases drivability and optimizes traction.

Using technology from Honda’s automotive division, it has the benefits of a locked front differential with none of the downsides. That means it maintains front-wheel traction even if one wheel wants to spin on ice or mud or if it’s in a hole.

But at the same time, you get the lighter steering, better tracking at high speeds, tighter turning radius, and reduced kickback associated with unlocked front differentials.

CHASSIS AND SUSPENSION

27-inch tires on 12-inch rims - DLX model, you get Maxxis Bighorn 2.0 tires with radial construction.

Dual A-arm suspension gives you 10.5 inches of travel in the front, and 10-inches of travel in the rear.

Ground Clearance 12.7 inches

Dual 210mm hydraulic discs front and rear.

The rubber mounted engine and exhaust system insulates against excessive vibration

Pioneer 1000 Limited Edition gets quick-adjust FOX QS-3 shocks on all four corners.

DRIVER/PASSENGER PROTECTION

The Occupant Protection Structure uses large-diameter tubing, and meets OSHA’s rollover protection standard. The hard doors and roll-up side nets help keep debris from entering the cabin, and auto-style three-point seatbelts are equipped with an emergency locking retractor mechanism, to help optimize passenger security.

ELECTRIC POWER STEERING

Electric Power Steering system helps eliminate bump steer through rocky and rutted terrain, which reduces fatigue. Added assist when you need it most, like when in 4WD, driving at lower speeds, or maneuvering over rough conditions.

Tilt Steering on EPS models.

ELECTRONIC BRAKEFORCE DISTRIBUTION

Honda’s Electronic Brakeforce Distribution automatically proportions the force to the front and rear brakes with changing conditions—all you do is press the brake pedal. (Standard on all Pioneer 1000 Limited Edition models.)

1000-POUND-CAPACITY TILT BED

Hydraulic assist tilt bed lever that can be accessed from outside the vehicle, or right from the driver’s seat.

2000-POUND TOWING CAPACITY

Standard 2 inch receiver hitch.

3-PERSON CONTOURED BENCH SEAT

Contoured for three passengers, the center seat is positioned up and forward to maximize space and comfort, and the covering is designed to resist both the elements and heavy use.

LCD DISPLAY

The multi-function LCD dash display is large enough to host loads of information, in an easy-to-read way, like speed and fuel level. RPM and transmission mode. Fuel gauge, water temperature, trip information, clock and more.


pioneer 1000-5 front

Honda PIONEER 1000 - MSRP $14,699

  • 999cc engine
  •  DCT transmission

PIONEER 1000 EPS - MSRP $15,899

Adds:

  • Power steering
  • ilt steering wheel
  • paddle shifters
  • sport mode

PIONEER 1000 LIMITED EDITION - MSRP $20,499

Adds:

  • I-4WD,
  • FOX QS-3 shocks
  • Hill-Start Assist
  • Electronic Brakeforce Distribution
  • aluminum skid plate and A-arm protection
  • aluminum wheels
  • red springs and A-arms
  • under-dash storage
  • front and rear cupholders
  • illuminated switches

2019 Honda Pioneer 1000 LE Specs



Pioneer 1000-5 Models

2019 honda pioneer 1000-52019 Honda Pioneer 1000-5

PIONEER 1000-5 - MSRP $16,899

Adds:

  • QuickFlip seating
  • auto leveling suspension

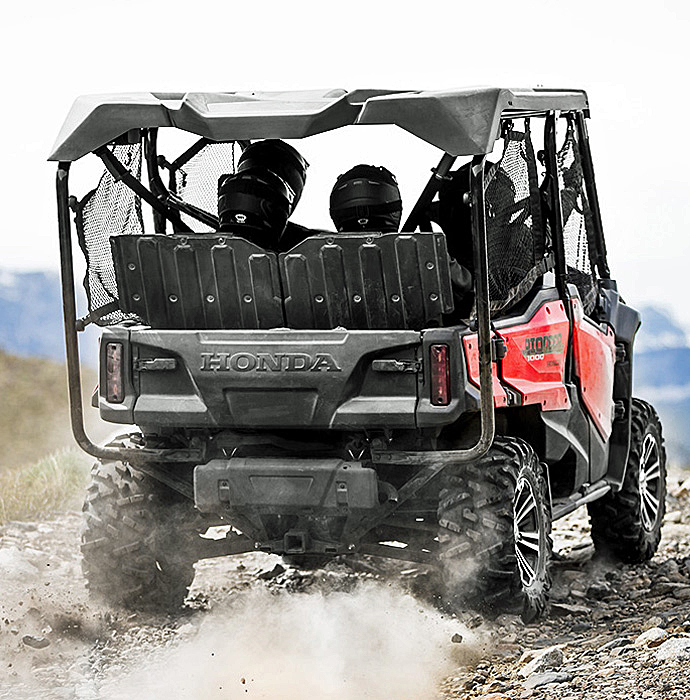

QUICKFLIP SEATING

Want to bring an extra one or two passengers along for the ride? Two QuickFlip seats pop up from the cargo bed on Pioneer 1000-5, giving you the extra seating you need, when you need it. Exclusive to Honda, it’s a smarter system than fixed seat, multi-row models, giving you better maneuverability on the trails.

PIONEER 1000-5 DELUXE - MSRP $17,899

Adds:

  • LED headlights
  • 14" aluminum wheels
  • available Honda Phantom Camo

PIONEER 1000-5 LIMITED EDITION - MSRP $22,099

Adds:

  • I-4WD,
  • FOX QS-3 shocks
  • Hill-Start Assist
  • Electronic Brakeforce Distribution
  • aluminum skid plate and A-arm protection
  • red springs and A-arms
  • under-dash storage
  • front and rear cupholders
  • illuminated switches

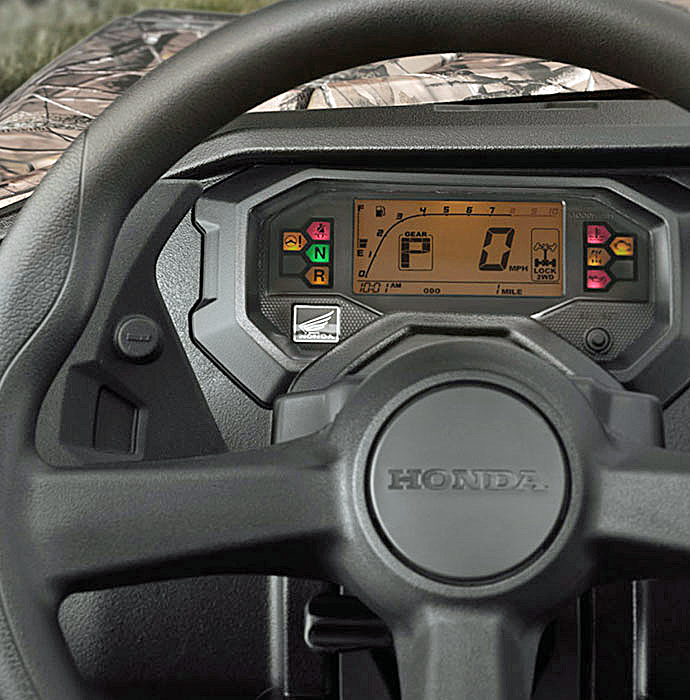

pioneer 1000 dashMulti-function digital gauge.

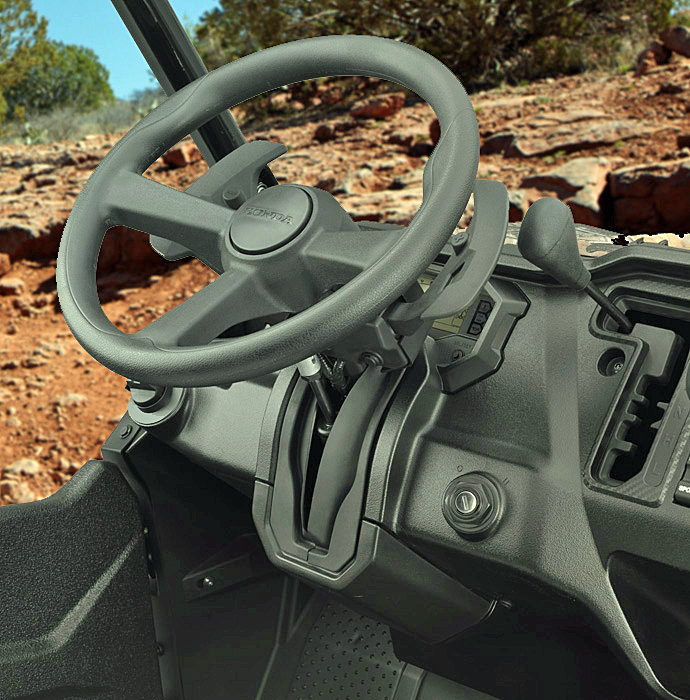

pioneer 1000 tilt wheelTilt Wheel and paddle shifters on EPS model.

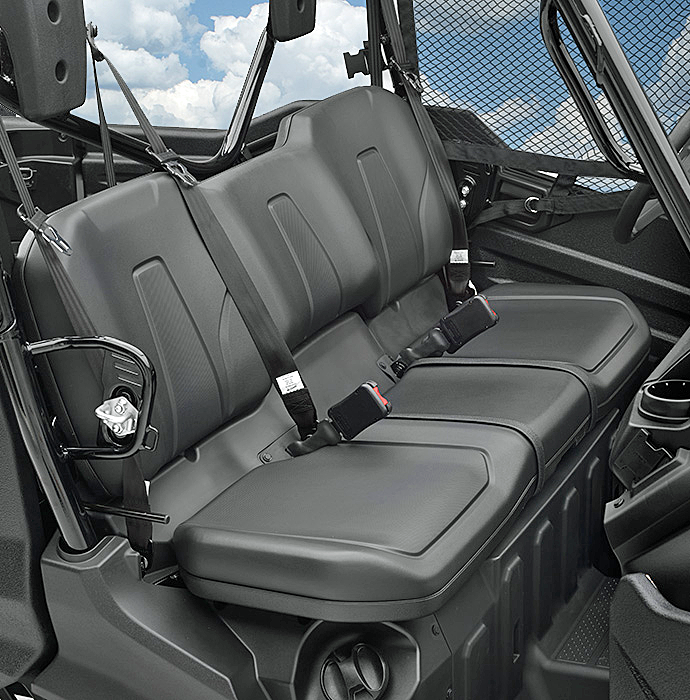

pioneer 1000 seatsContoured seating for three.

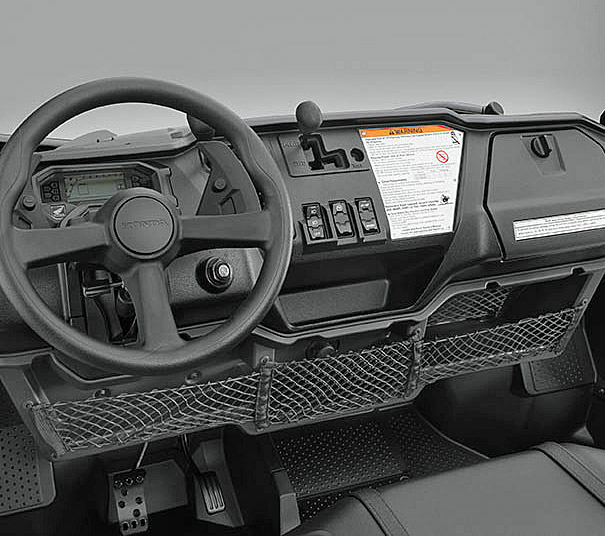

pioneer 1000 leLE with I-4wd and underdash storage.
