Vampire
ATV Tires - Review and Recommendations.
Vampire ATV tires are obviously aimed at mud riding. But if you
assumed that's all they were good for - you would be missing out on
everything these tires can do.
The thing to keep in mind is there are actually three different tire
types within the line of Vampire ATV tires.
The standard TSL is great choice for general riding with the emphasis
on mud riding. For more serious mud bogging - you can choose the EDL
model with a full 2" lug depth.
The ASX model is an asymmetrical tire with extra lugs on the outside
sidewall for better traction in ruts and when cornering. The inside
sidewall doesn't have lugs which improves clearance and allows a larger
tire size than would otherwise be possible.
TSL
Vampire ATV Tires
The
Super Swamper
TSL/Vampire is about as rugged as they come for trail riding with the
accent on mud capability.
The deep lugs give longer tread life with the 43/32nds of tread depth
and great forward, reverse and lateral traction.

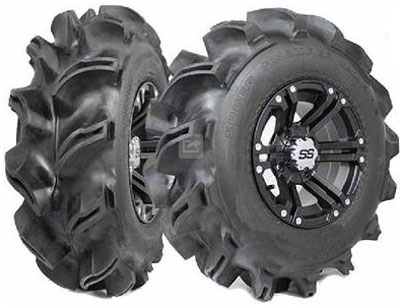

For really serious ATV mud riding - consider the 28" EDL Vampire ATV
tires with a full 2" lug depth.
The Vampires are designed to run under most load
conditions even when punctured. As long as the Vampire doesn't become
unseated from the rim, the tire will almost always get you back... even
without air.
| Size |
Weight |
Tread
Ply |
Lug
Depth |
Tread
Width |
O.D. |
Rim |
Max PSI |
Max
Load |
| 22x12.50-10 |
25 |
4 |
41/32 |
10.5 |
21.8 |
10x8 |
5 |
375 lbs. |
| 24x9.00-10 |
20 |
4 |
43/32 |
8.1 |
24.0 |
10x7 |
5 |
305 lbs. |
| 25x13.00-10 |
31 |
4 |
43/32 |
9.8 |
25.2 |
10x7 |
5 |
470 lbs. |
| 25x9.50-10 |
22 |
4 |
43/32 |
8.1 |
25.0 |
10x7 |
5 |
365 lbs. |
| 26x9.50-10 |
23 |
4 |
43/32 |
8.0 |
26.0 |
10x7 |
5 |
370 lbs. |
| 26x12.00-10 |
23 |
4 |
43/32 |
12.2 |
26.2 |
10x7 |
5 |
470 lbs. |
| 27x10.00-10 |
22 |
4 |
44/32 |
7.5 |
26.8 |
10x7 |
5 |
370 lbs. |
| 24x9.00-11 |
20 |
4 |
43/32 |
8.1 |
24.0 |
11x7 |
5 |
310 lbs. |
| 25x9.50-11 |
22 |
4 |
43/32 |
8.1 |
24.7 |
11x7 |
5 |
355 lbs. |
| 25x12.00-11 |
31 |
4 |
43/32 |
9.8 |
25.2 |
11x7 |
5 |
460 lbs. |
| 26x12.00-11 |
31 |
4 |
43/32 |
12.2 |
26.2 |
11x7 |
5 |
470 lbs. |
| 26x9.50-11 |
22 |
4 |
43/32 |
8.2 |
26.2 |
11x7 |
5 |
370 lbs. |
| 27x10.00-11 |
23 |
4 |
44/32 |
7.5 |
26.8 |
11x7 |
5 |
390 lbs. |
| 27x12.00-11 |
32 |
4 |
39/32 |
12.0 |
27.0 |
11x7 |
5 |
480 lbs. |
| 25x12.00-12 |
30 |
4 |
43/32 |
11.3 |
25.3 |
12x7 |
5 |
430 lbs. |
| 25x9.50-12 |
23 |
4 |
43/32 |
8.1 |
25.0 |
12x7 |
5 |
355 lbs. |
| 26x9.50-12 |
24 |
4 |
43/32 |
8.4 |
25.8 |
12x7 |
5 |
345 lbs. |
| 26x12.00-12 |
32 |
4 |
43/32 |
12.2 |
26.2 |
12x7 |
5 |
460 lbs. |
| 27x12.00-12 |
32 |
4 |
39/32 |
12.0 |
27.0 |
12x7 |
5 |
480 lbs. |
| 27x10.00-12 |
25 |
4 |
44/32 |
7.5 |
26.8 |
12X7 |
5 |
400 LBS. |
| 28x10.00-12 |
37 |
4 |
64/32 |
8.5 |
28.2 |
12x7 |
5 |
390 lbs. |
| 22x12.50-9 |
24 |
4 |
41/32 |
10.5 |
21.8 |
9x9 |
5 |
385 lbs. |
| 25x13.00-9 |
30 |
4 |
43/32 |
9.8 |
25.2 |
9x7 |
5 |
470 lbs. |
TSL
Vampire ATV Tires - ASX Type
The outside sidewall has a full sidewall tread
on one side
(asymmetrical). You sacrifice a little lug depth for the mud, but gain
better general trail riding ability under most other conditions.
This gives the tire excellent characteristics for climbing out of ruts,
excellent rim and sidewall protection, and allows for an increase in
tire width without the problems of rubbing on the frame.
When purchasing these tires remember you will need two for the left and
two for the right side of the ATV.
| Size |
Weight |
Tread
Ply |
Lug
Depth |
Tread
Width |
O.D. |
Rim |
Max PSI |
Max
Load |
| 26x9.50-12 L |
27 |
4 |
26/32 |
9.2 |
26.0 |
12x7 |
5 |
380 |
| 26x13.00-12 L |
36 |
4 |
32/32 |
13.4 |
26.0 |
12x10 |
5 |
455 |
| 26x9.50-12 R |
27 |
4 |
26/32 |
9.2 |
26.0 |
12x7 |
5 |
380 |
| 26x13.00-12 R |
36 |
4 |
32/32 |
13.4 |
26.0 |
12x10 |
5 |
455 |
